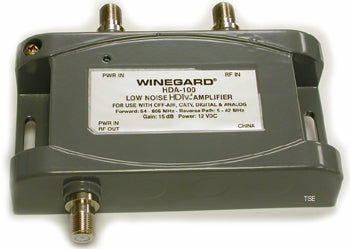

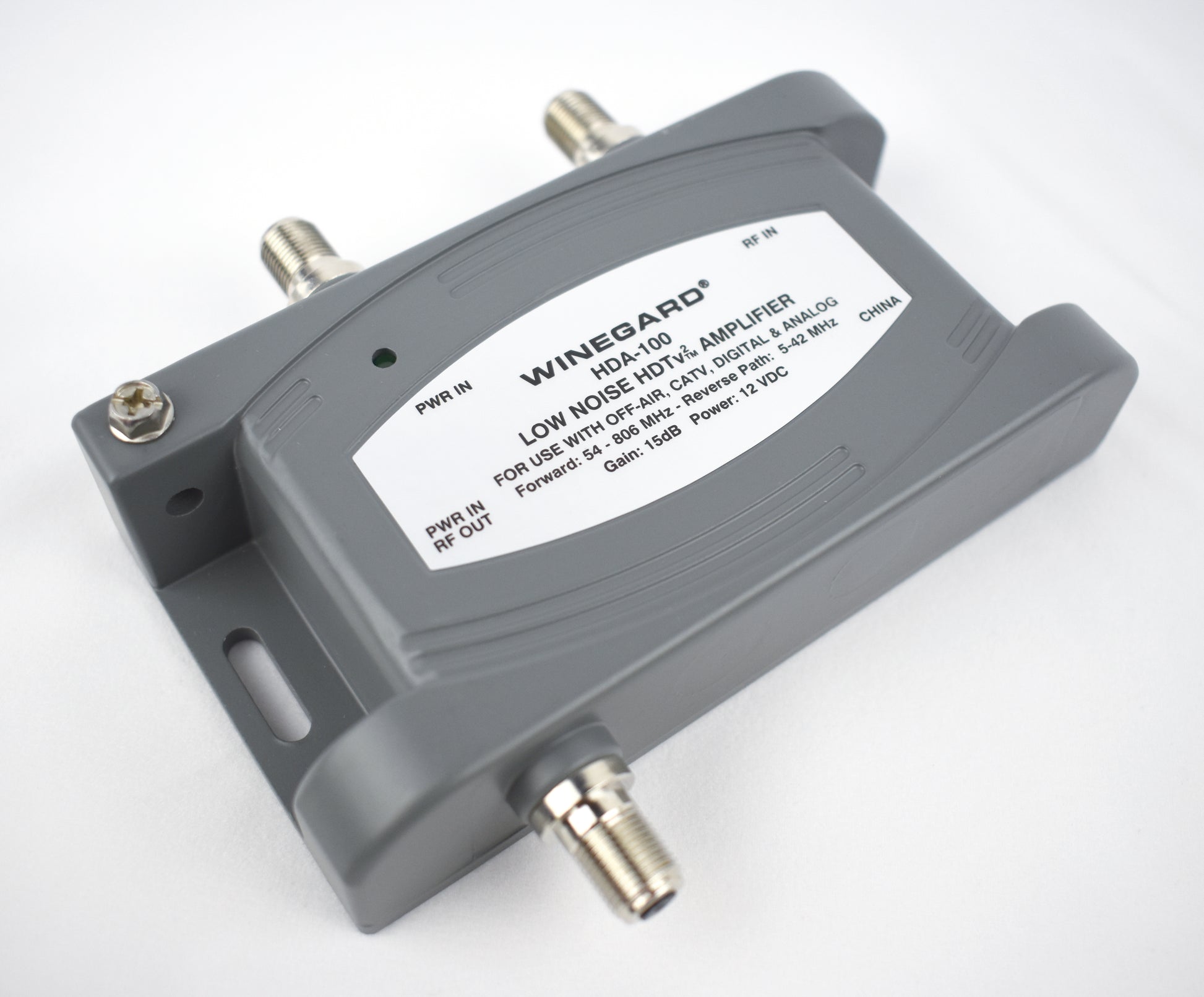

Winegard HDA-100, Distribution Amplifier, 15dB, 54-1000 MHz

Winegard’s new HDA series of distribution amplifiers was designed to meet the market demand for a heavy duty, quality built, cost effective solution for the amplification and distribution of analog/digital broadcast signals from Off-Air and cable TV stations.

FEATURES

• Low-Noise Distribution Amplifier – Overcomes signal loss in coaxial cable running from antenna to TV.
• Weather-Resistant – Housed in an industrial-grade enclosure to protect against the elements.

SPECIFICATIONS

• Maximum Gain: 15dB. Amplifies signals from 54-1000 MHz.
• Single RF Output: Features 5-42 MHz two-way bi-pass at 2dB.
• Noise Figure: 3dB (typical)
• Power: 12 VDC

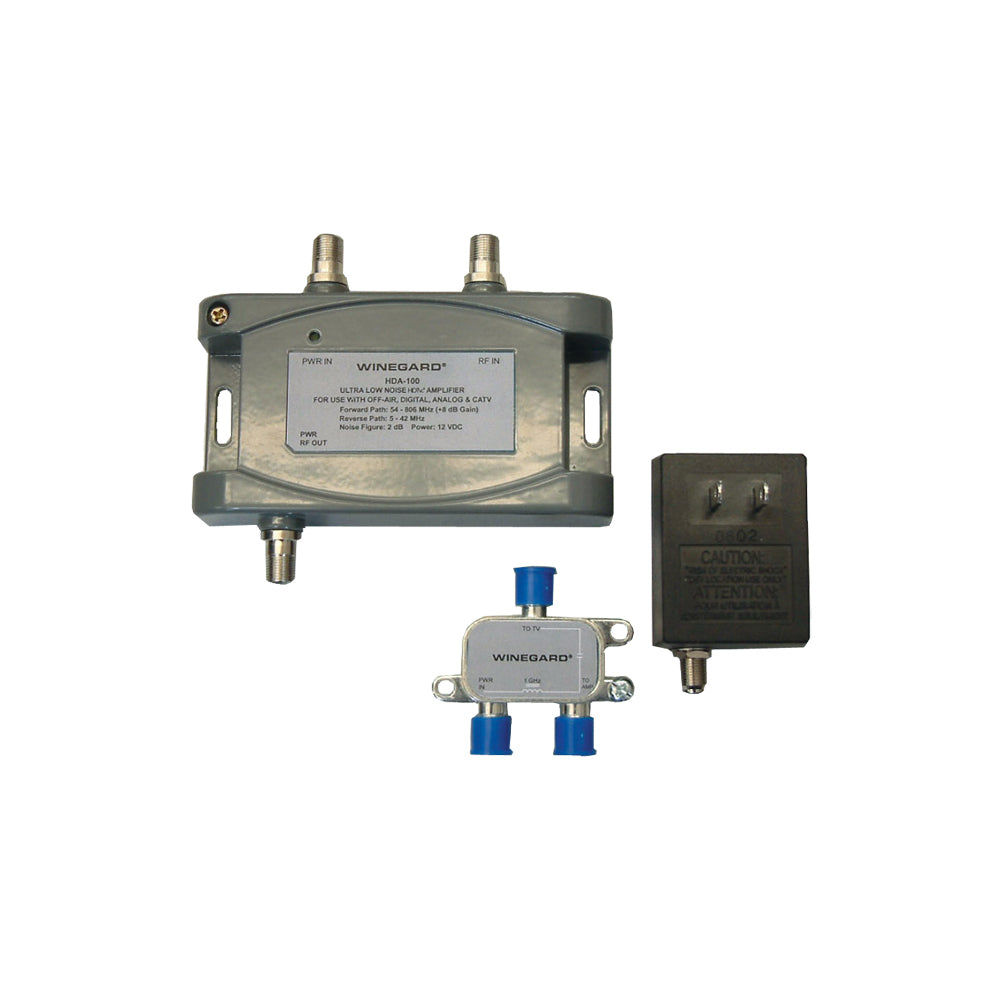

INCLUDES

• HDA-100 Distribution Amplifier

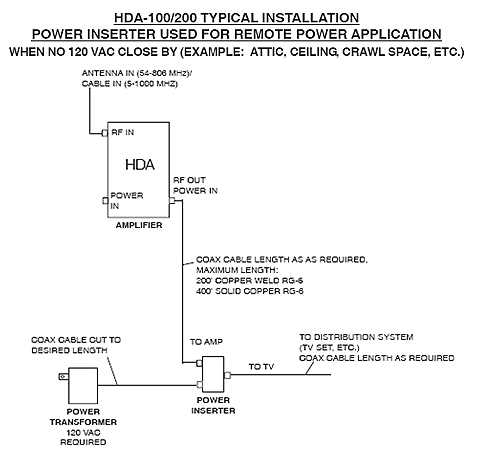

• Power Inserter
• Power Supply

• Mounting Hardware
• Instructions

DIMENSIONS & WEIGHTS

• Height: 4.50"
• Width: 1.25"
• Length: 5"
• Weight: 0.6 lb

Compare to: Channel Master™ 3410, Macom™ TA-15
