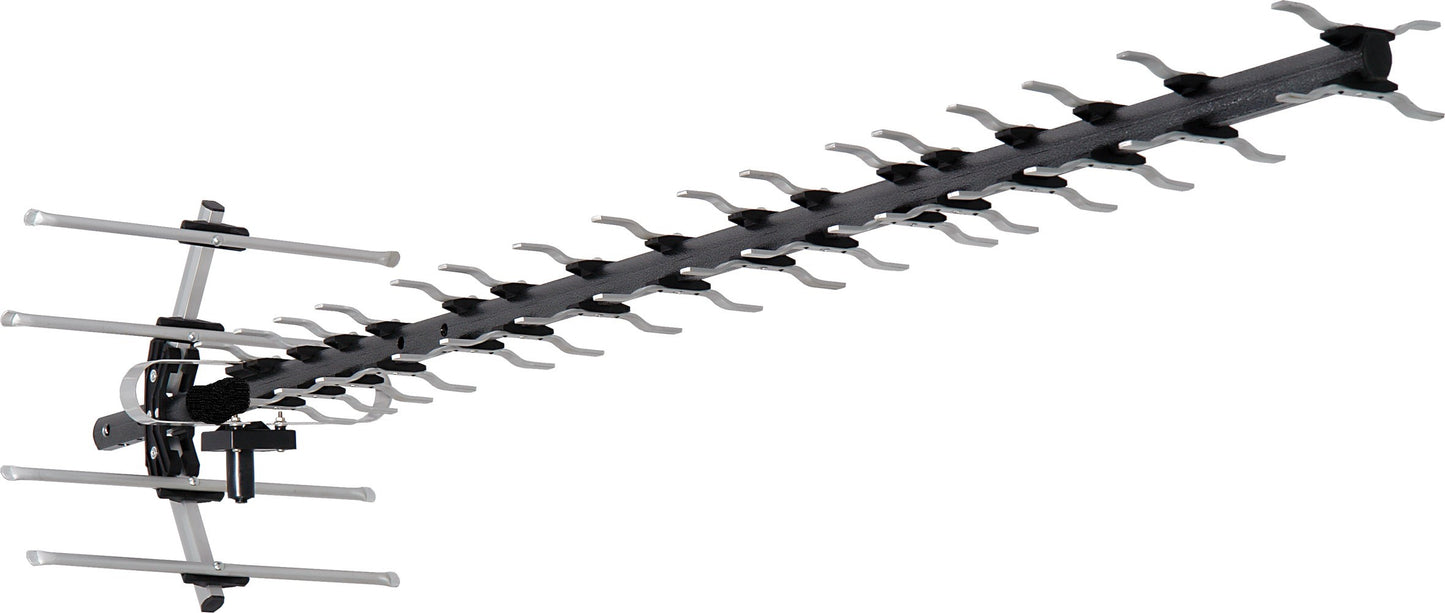

Sky Blue SB40 UHF Antenna 65" Boom 34 Element Long Range Fringe Channels 14-50

Sky Blue SB40 UHF Fringe Antenna

FEATURES:

• F-Type high-performance PCB balun
• Snap out reflectors
• Stainless Steel screws
• Designed and tested for Digital signal
• Heavy duty construction
• 1/2” extruded Aluminum heavy duty
• elements
• Tough powder-coated finish
• UV stabilized plastics
• Bifurcated rivets - Strongest in the
• industry
• U-bolt & Clamps fitted

SPECIFICATIONS:

• Elements 34
• UHF Channels 14-69
• Forward Gain dB 10`16.5dB
• Front to Back Ratio 14.5~21.5dB
• DIMENSIONS
• Overall Length 64”
• Maximum Width 13.5”
• Maximum Height 13.5”
• Assembled Weight 3.63lbs

ACCESSORIES INCLUDED:
F connector rubber boot, V-block, and U-bolts pre-assembled on antenna.
