Product Description & Specs

Televes introduces the most versatile and market disruptive antenna in the world, EVOCA: Televes’ EVOCA antenna is designed for indoor or outdoor use to receive over-the-air television broadcast signals and has a separate 5G antenna built in to receive 5G signals outdoors where they are typically stronger.

  • Sleek attractive cutting-edge design for metro urban and suburban use to 50+ miles
  • Crafted from ultra-strong ABS Plastic with a metal reflector and stainless-steel mounting hardware
  • Can be mounted indoors with or without the metal reflector, in an attic or outdoors mounted to a flat surface or traditional mast mounted.
  • Each EVOCA antenna is powered by Televes’ exclusive TForce pre-amplifier with integrated 5G filter
  • Integrated 5G antenna is passive
  • High VHF and UHF reception, High VHF is Bi-directional, and UHF receives in a 60 degree pattern
  • EVOCA is optimized for the latest UHF frequency reception under 600MHz and includes a 5G / LTE filter on the TV output to block 5G interference on the TV signals.
  • In addition to receiving existing HDTV stations, EVOCA carries the NexGen Logo to insure compatibility with the latest television broadcast updates (UHD / ATSC 3.0 / NextGen),

The antenna also has a second broadcast antenna and output connector for future use as specified in NexGen ATSC 3.0 under MIMO transmission (connector #2).

Televes 130990 Evoca Short to Medium Range Indoor/Outdoor Hi-VHF/UHF Antenna and 5G Extender. Built-in amplifier for best TV performance. Can be mounted on a tabletop, wall, or outdoor mast.  DESKTOP WITH OFFSET REFLECTOR:

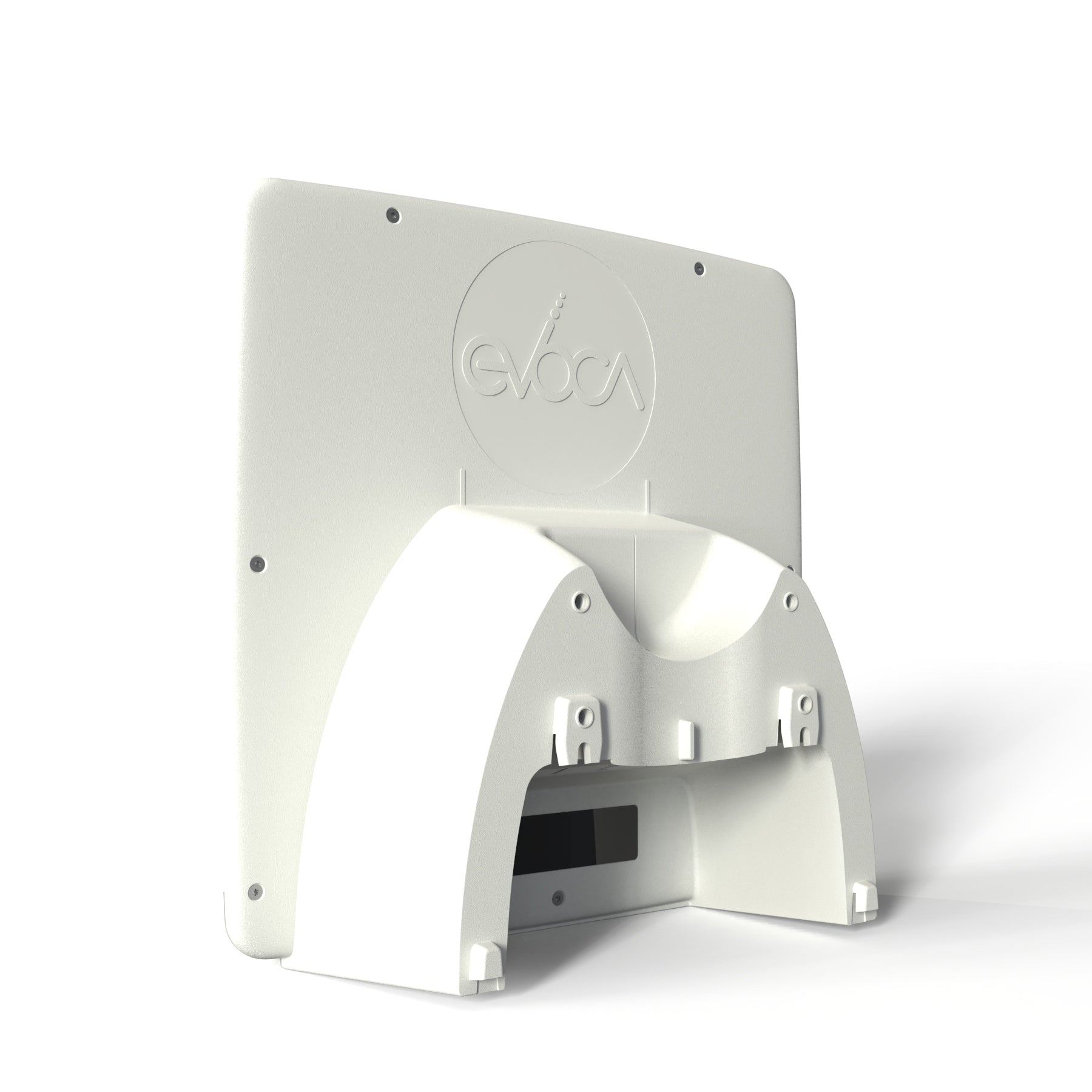

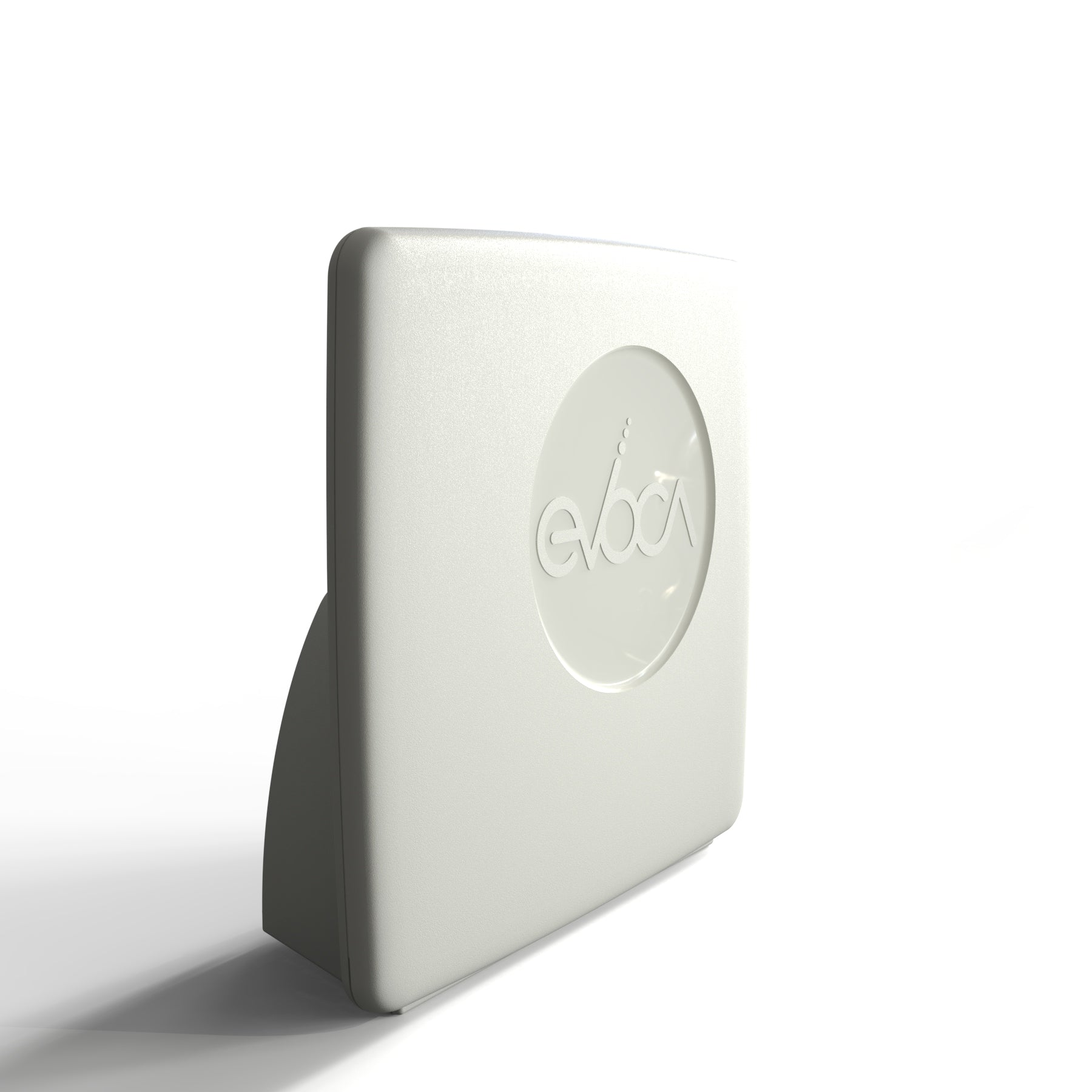

The design of the antenna allows for the reflector to be attached so that it sits flush with the antenna bottom, so that it can be used as a desktop unit with the reflector on. This is beneficial because it increases forward gain and minimizes back and side reception (the reflector provides a hard null at 90º) greatly reducing multipath interference, which is always the biggest problem indoors. The user can play around and identify a position indoor that optimizes performance (direct reception or main reflection reception) which would be otherwise hampered by all the reflections inside if no reflector is present. Another good and frequent application I envision for this is for the antenna to sit on a window sill inside of the house or in the attic maybe, facing in the direction of the transmitters. Or in the attic looking at the wall that faces the transmitters. This mode will be beneficial in many installation scenarios, and the footprint of the antenna when seen from the front is not that different. Pictures follow below. Note how the reflector is attached sitting flush with the bottom of the aerial.

WALL MOUNT WITH REFLECTOR: The user can remove the mast clamp from the reflector, but keep the reflector attached to the antenna. The antenna provides two hookups to attach it to a wall, siding of the house, or any other flat surface, with a couple hooks or screws. It will sit flush with the wall sitting on the four plastic pieces indicated. This is a very discrete installation that is my personal favorite. It allows for the antenna to be flat mounted on the house siding on the side of the house that faces the transmitting towers, maybe under the eave or something like that, still taking full advantage of all the gain available and stability of an outdoor install without the clutter of the mast mounting and staying very inconspicuous. Really simple install just needing a couple wood screws. Again, when looking at the antenna from the front the reflector is barely appreciable. We’ve actually purposely kept the reflector at a minimum size for two reasons, optics (keep it discreet), and allow for the maximum omnidirectionality on 5G. Pictures of this setup follow below.

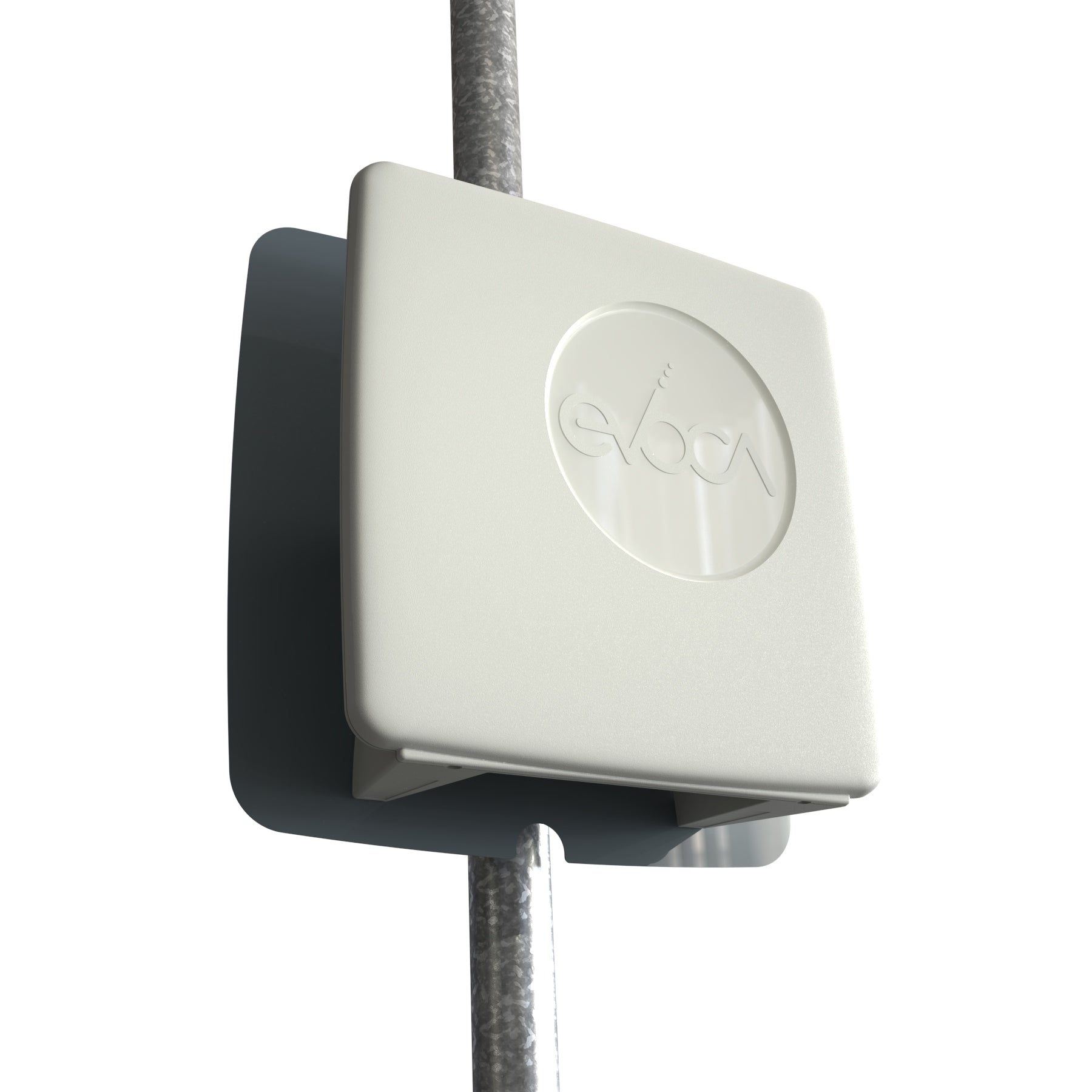

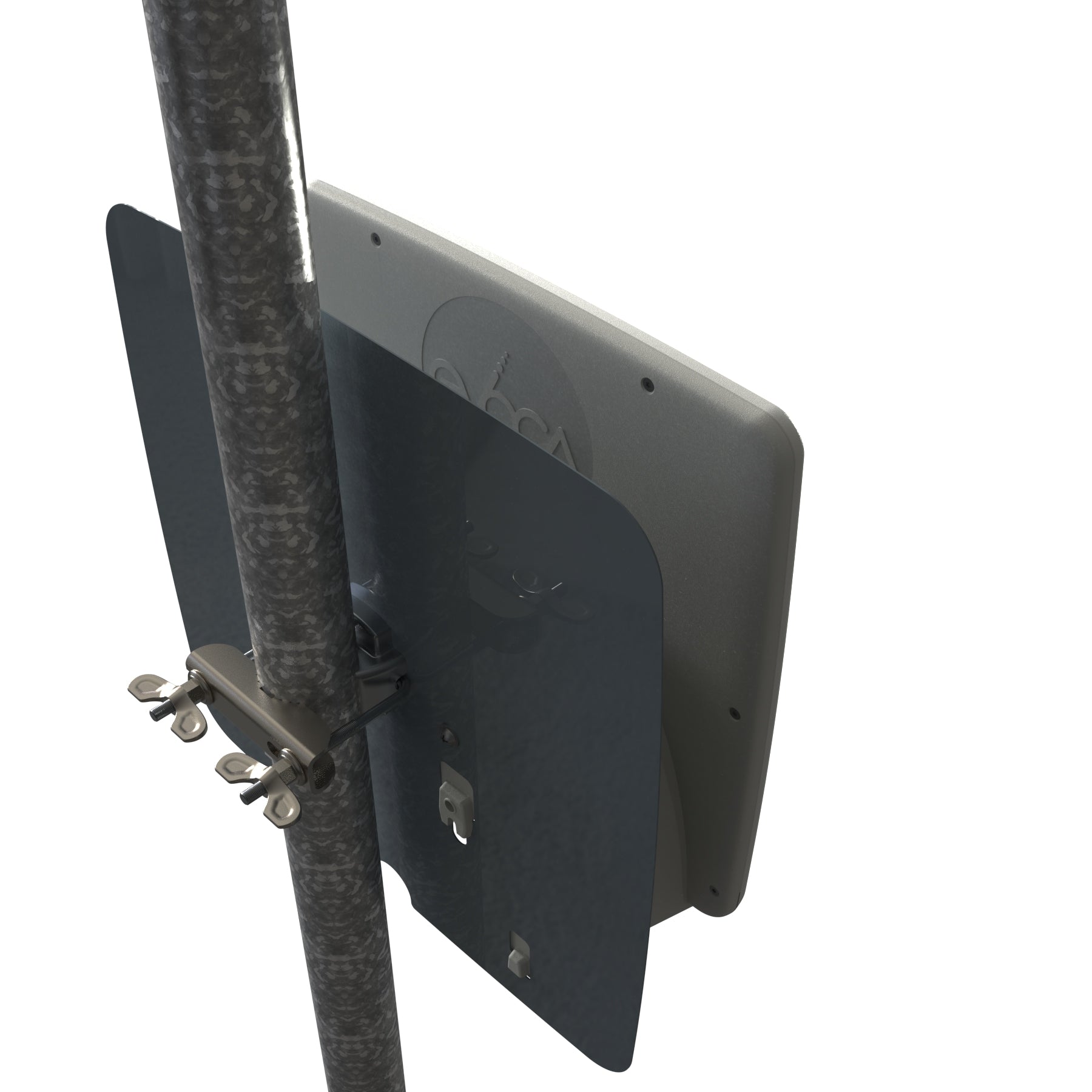

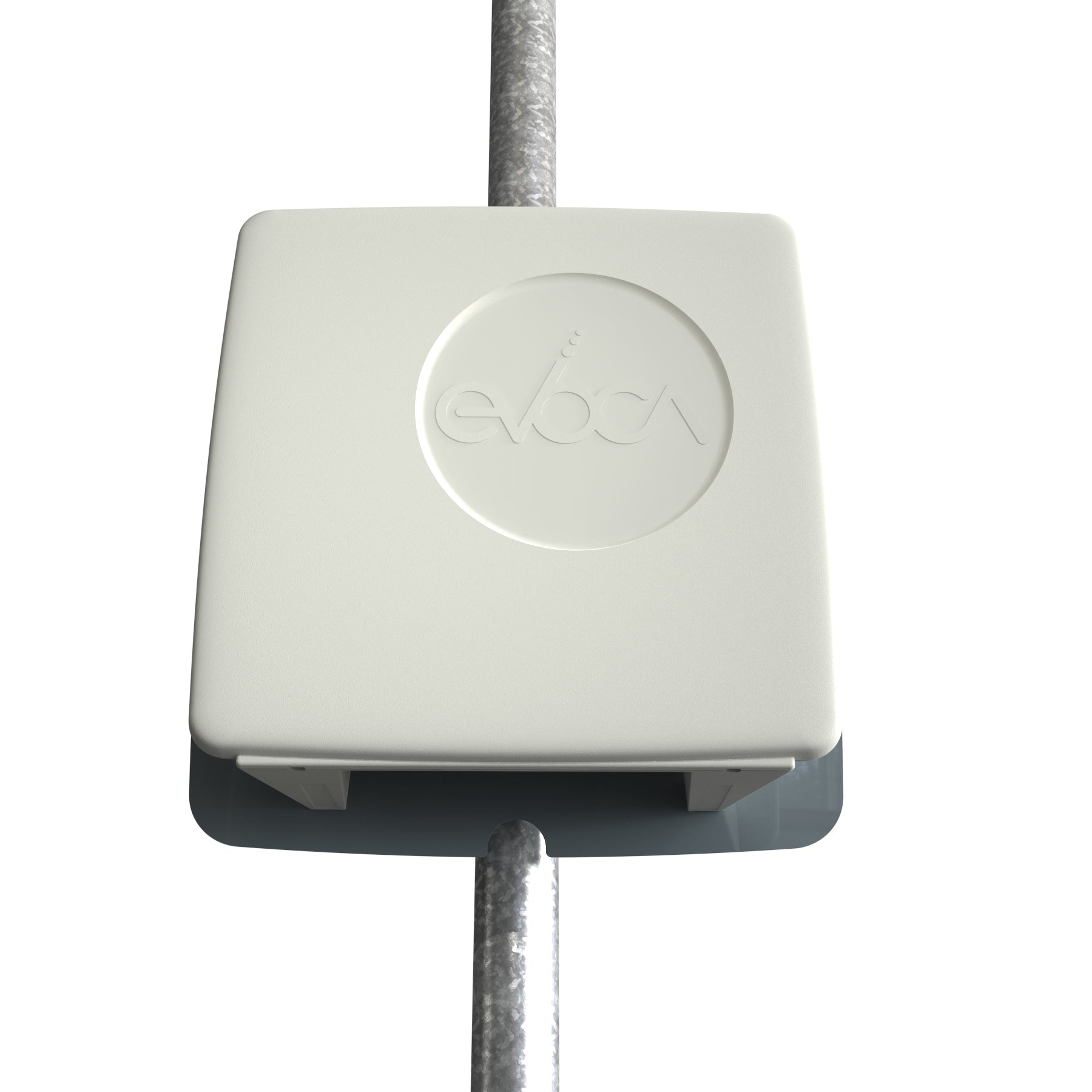

MAST MOUNT WITH REFLECTOR: Traditional outdoor unit install. With the included clamp attached to the reflector and hand oversized wing nuts, the subscriber needs no tools to attach the antenna to an existing satellite J-mount or any other type of mount. Replacing a dish is a very common installation among cord cutters. Remove the dish, install a Dinova or an Ellipse, and use the same coax cabling that goes into the house. Boom, problem solved. Thousands and thousands of Dinovas and Ellipses live in repurposed Dish and DirecTV mounts across the union. No difference with this antenna in that regard. An outdoor installation such as this over the roof line will always be the optimal one from a signal quality and uptime perspective. But the antenna is so small that it can also be attached to a balcony, fence railing, to a stud inside of the attic, etc. Pictures of this installation style follow below. Again, from the front you cannot see the reflector, but trust me you want it there. Also, we designed the clamp and the reflector so the antenna can be tilted sideways in case the pole it’s attached to is not perfectly vertical.

  • Top quality Antenna from the worlds leader in Over The Air Antennas
  • Hi-VHF/UHF Antenna Indoor and Outdoor Application
  • Desktop Set it and forget it Installation
  • Mast Mount Included for Outdoor Use
  • Wall Mountable
  • Short to Medium Range Antenna
  • Small footprint and good aesthetics for indoor use
  • 5G Extender improves your 5G signal throughout your home

With the Evoca antenna positioned outdoors, it can be used to pick up 5G / LTE signals and route them inside the house to a 5G modem (not included). This will typically provide better 5G / LTE reception than an indoor antenna. The 5G extender is a separate feature from the TV antenna with a separate output connector (#1 / 5G).


click below for PDF info files:
     connection diagram and instructions
     Televes mounting and installation instructions
