Televes 149281, V ZENIT UHF HDTV Antenna, Metro/Suburban/Far Suburban Coverage, 38 Inch Boom

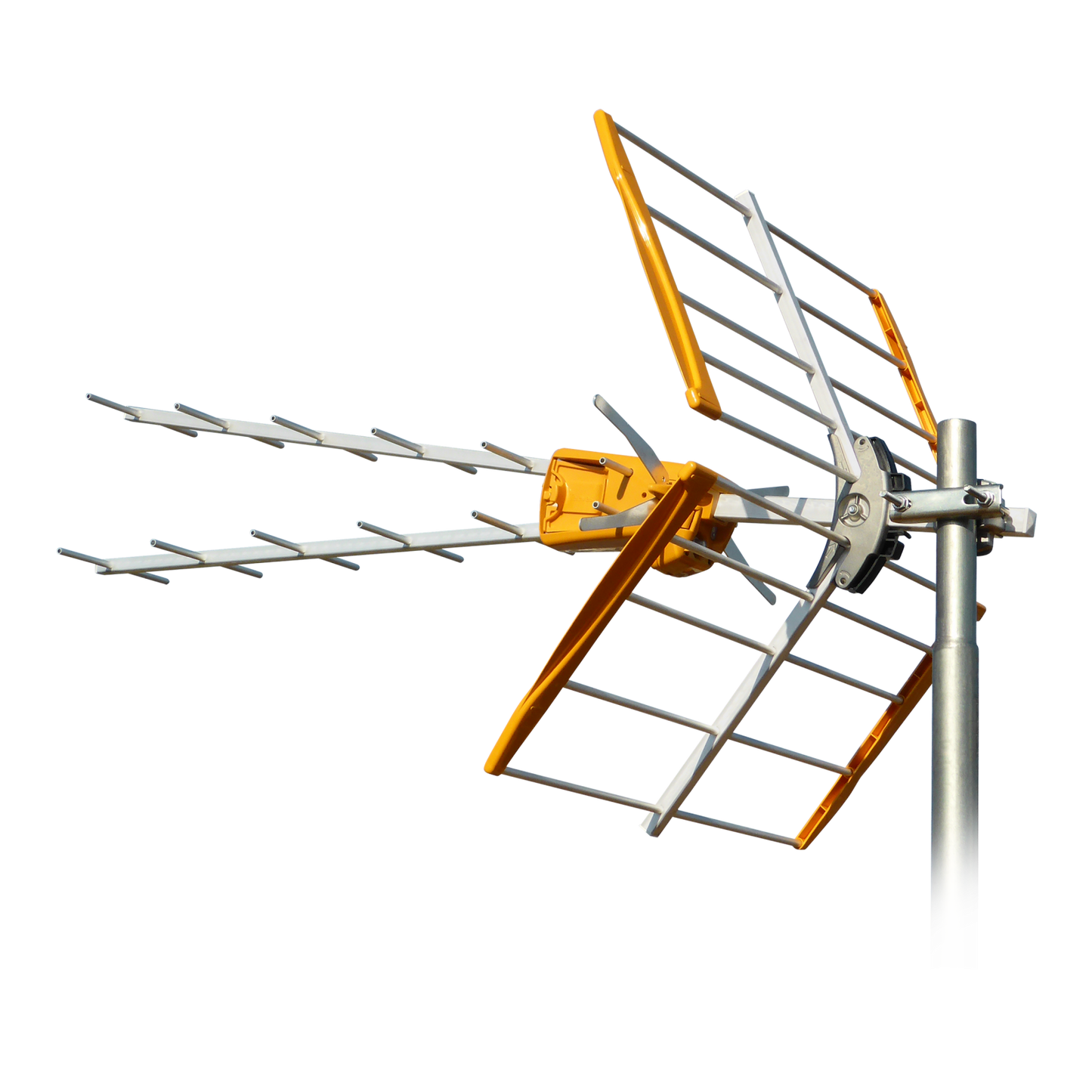

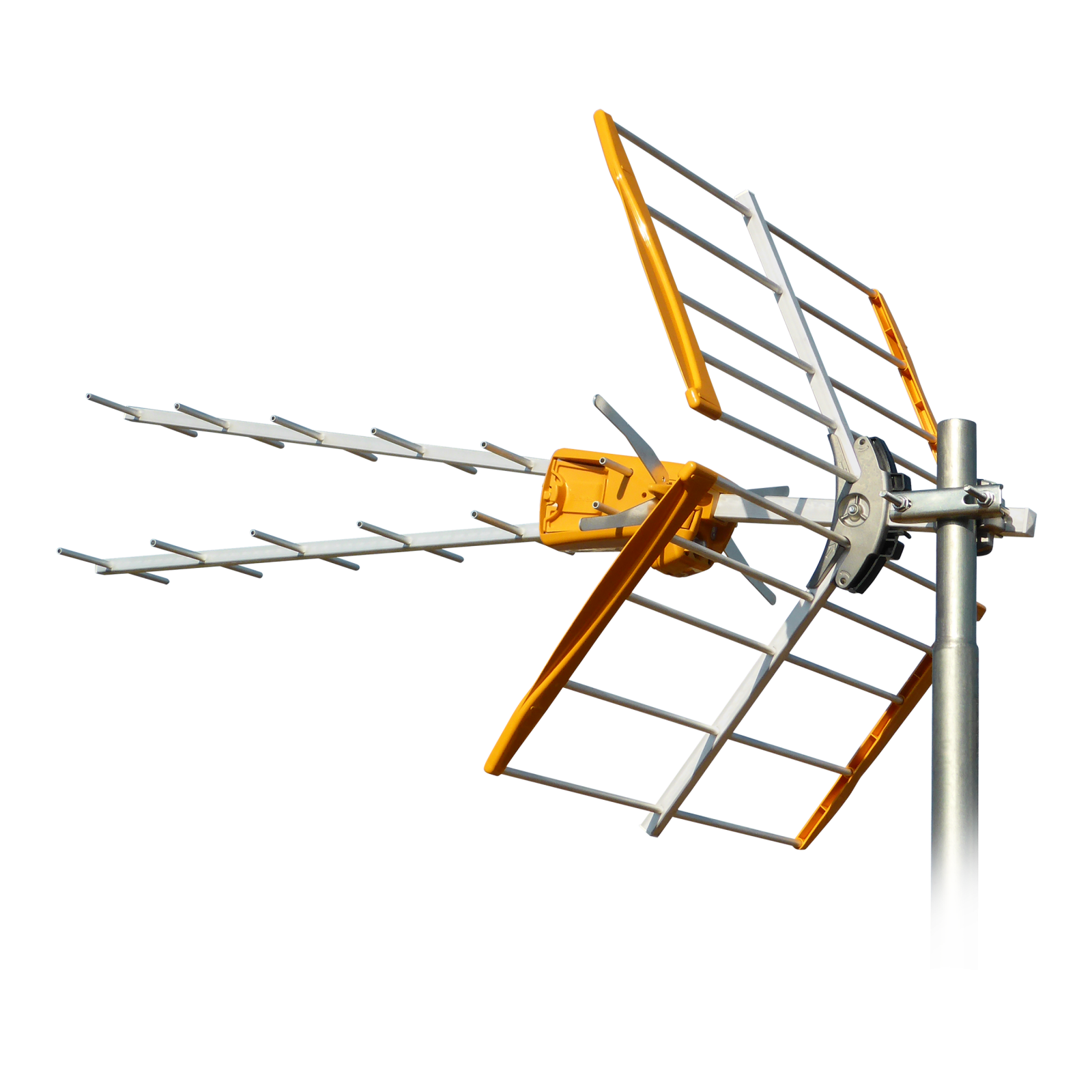

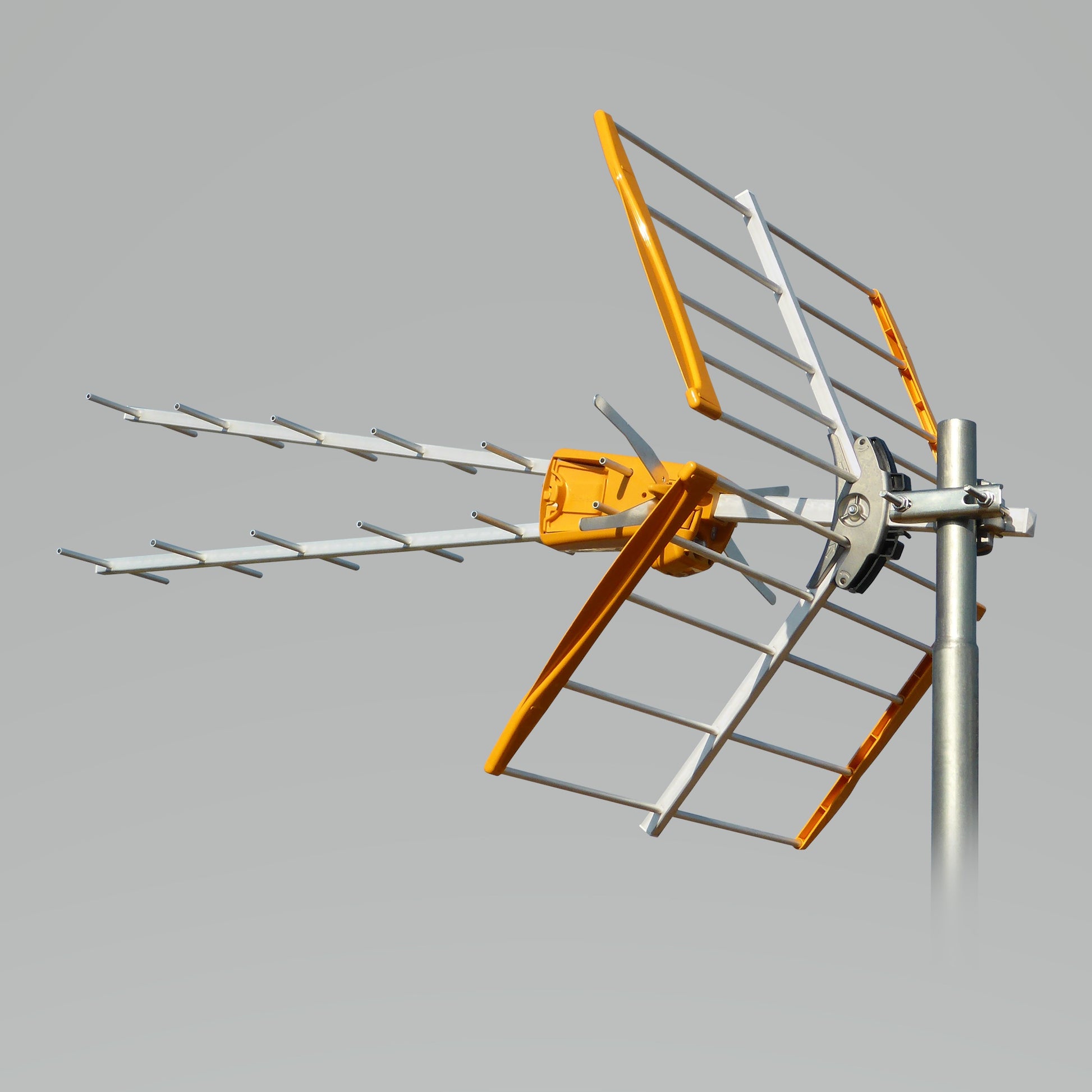

The V Zenit antenna has a V-type structure: it consists in two vertically stacked Yagi in phase, which results in a compact antenna thanks to its excellent ratio between gain and length.
For UHF reception it includes a filtering feature with a high rejection for bands beyond channel 48, without losing flatness in the frequency response of the pass-band (channels 21-48). This makes it suitable for the 2nd Digital Dividend (LTE700).

• Quick and secure reflector assembly system
• Robust mechanics with outstanding performance in vibrating situations

• Compact: excellent ratio between gain and length
• Flatness of the frequency response in the UHF band

• Built with aluminum (corrosion resistant ) for a long service life, and in ABS plastic for high weather resistance
• The mast-mounting  system utilizes Zamak to provide sturdiness and stability in adverse weather conditions
• Designed and manufactured in Europe, our products undergo the most stringent quality controls
• The connection box includes a balun for impedance matching

In addition to receiving HDTV signals, this antenna is also capable of receiving 4k ultra high definition stations (aka NextGen TV / ATSC 3.0 / UHD). Viewing 4k UHD also requires a TV capable of receiving 4k UHD signals and TV station(s) broadcasting in 4k UHD.

Radiation Pattern

Product Sheet/Specifications

Data Sheet/Instructions
